RoboSONIC Inline Pro

The RoboSONIC Inline Pro is a buffering conveyor-based machine designed to portion traybakeround and loaf products using highly flexible robotic and ultrasonic cutting technology.

This machine, which can be integrated into your existing production line or can be used as a standalone solution, is simple to program and operate with a user-friendly colour touch screen. With a range of blade size options and automatic head change over available, you can use this single solution for a variety of products and cut profiles.

Specifications

Use the tabs below to view the information for this machine,
or download a copy of the Datasheet at the bottom of the page

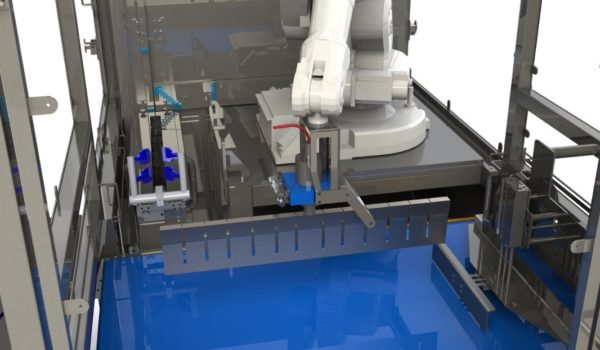

roboSONIC-Inline Pro2

The roboSONIC-Inline Pro is a highly flexible, in-line robotic cutting machine incorporating ultrasonic cutting technology, along with buffering conveyers, in order to reduce indexing time. It is designed to portion tray bake, round, and loaf type products. As a conveyor-based machine, it can be integrated into an existing line or used as a stand-alone solution.

Key features

  • Designed for cutting tray brake, round and loaf type products
  • 6-Axis robot providing flexiblity, reliability and accuracy
  • Independently moving conveyors eliminate approx. half of the loading time, resulting in increased throughput
  • Operated via full Colour touch screen with user friendly interface and easy-to-edit programs
  • 3 user log in levels – Operator, Supervisor and Engineer
  • 20kHz ultrasonic titanium blade
  • Integrated cleaning tank with air-dry
  • Remote access capability

Services required

  • 3 phase electrical supply 400VAC(3PH+N+E) \ 50Hz \ 32A
  • 6 bar Air
  • Mains Water Supply for Cleaning Tank
  • Ethernet Connection for Remote Access

Additional features

  • Cut on the belt or on product boards
  • Fully Stainless Steel construction & food grade plastics
  • Quick-release conveyor belt for ease of removal
  • Range of blade size options to suit your application
  • Head change over, trim removal, waste conveyors and automatic packaging machine feed are available as optional extras
  • Also available with a mechanical blade

Find out more

Contact us today about how the RoboSONIC Inline Pro can solve your cutting challenges and save your business money. For further technical specifications, you can also download our in-depth data sheet.
